EO
Optimise Productivity Safely.
In the materials handling world, order picking is the most labour-intensive and expensive. By paying careful attention to process design, it’s possible to keep these costs under control and make your warehouse more efficient and profitable.
Safety & Precision.
Designed with the same safety, precision and efficiency as the LO-series, the EO-series prioritises usability and ergonomics for those hard-to-reach applications. With platform heights up to 10500 mm and a maximum picking height of 12100 mm, the EO-series of order picker trucks maximises your warehouse storage capacity – keeping both your operational efficiency and safety standards high.
We know the operator is key for efficient warehouse operations, and order picking is no exception. That’s why our EO-series is designed to enable the operator to carry out their job safely and comfortably for maximum productivity, reducing your TCO.
Comfort & Premium Features.
With premium safety features including pro-vision mast for optimal visibility and warning lights expertly positioned for safety without distraction, these order picker trucks place operator and warehouse safety at the forefront of material handling. The EO-series has additional safety measures in place such as driver presence check to adjust speeds and driving functions automatically, and a wrap-around bumper to reduce any damage upon impact.
Like with the LO-series, the EO-series of order picker lift trucks have replaced the dead-man’s foot switch with smart floor sensors to reduce trip hazards and optimise operator comfort and safety. Comfort is key so these trucks provide a spacious cabin with adjustable controls for a more productive space while a low step-height and comfort rail reduce operator strain.
High Quality & Efficient.
At TCM, we have a rich history of providing quality trucks that are adaptable to unique working applications. The operator cabin of the EO-series is fully configurable with features like scanners and label printers to suit your application needs. Further customising our EO-series order picker trucks with features like individual driver PIN codes and different performance modes help to optimise operator shifts and boost productivity.
Combined with an efficient battery exchange and an ECO mode that saves around 6% on running costs, this range of order picker trucks provides consistency and efficiencies for loads up to 1250 KG.

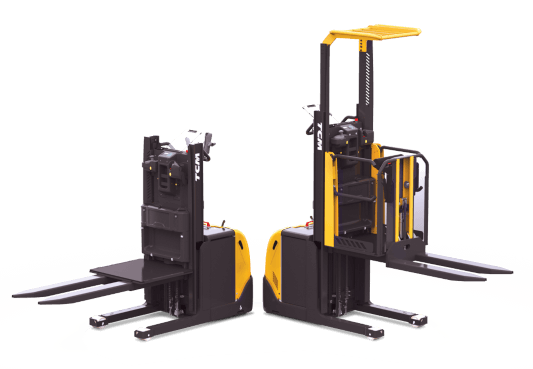

Medium & High Level Order Picker
Specifications.
Model
|
Kg
Capacity
|
mm
Load centre
|
V
Voltage
|
mm
Length
|
mm
Width
|
mm
Turning radius
|
km/h
Travel speed with / without load
|
---|---|---|---|---|---|---|---|
EOM 100 | 1000 | 600 | 24 | 1655 | 810 | 1570 | 9.0 / 9.0 |
EOM 100 | 1000 | 600 | 24 | 1675 | 810 | 1570 | 9.0 / 9.0 |
EOC 100 | 1000 | 600 | 24 | 1903 | 970 / 1070 / 1170 | 1790 | 11.0 / 11.0 |
EOC 100 | 1000 | 600 | 24 | 1982 | 1070 / 1170 | 1790 | 11.0 / 11.0 |
EOH 125 | 1250 | 600 | 24 | 2139 | 1170 / 1350 | 2020 | 12.0 / 12.0 |

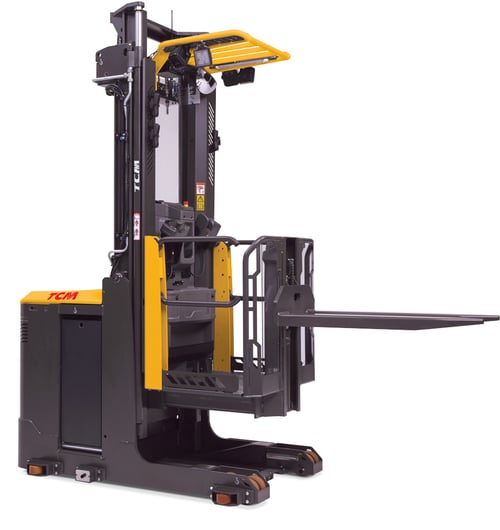

Medium & High Level Order Picker.
The EO-series order pickers have been designed with usability and ergonomics as the foremost priority. The impressive reach of the EO series means that you’ll be able to maximise use of space in your warehouse whilst keeping safety standards high.
As part of our ongoing commitment to operator safety and comfort, we’ve replaced the cumbersome dead-man’s foot switch with smart sensors embedded in the floor of the operator’s area.
Along with the rest of our product range, you’re also able to configure the operator’s cabin as you’d like, with terminals, scanners, label printers and more to suit your processes.
Safety First.
In a workplace where handling heavy machinery is at the core of operations, safety regulations and procedures must be top priority.
That’s why we adopt a safety-first approach with our forklift design. Incorporating extensive safety features helps to reduce forklift truck accidents and ensure our trucks are reliable in real-world conditions and compliant with industry standards. This approach extends to our end-to-end support to ensure you have the tools you need to provide operators with the necessary safety training.
Total Cost of Ownership.
Whether you’re looking to cut costs or improve operational efficiency, reducing your total cost of ownership (TCO) is key. TCO takes into account the initial purchase price of equipment, as well as any direct or indirect expenses incurred.
Combining fit for purpose, tailored forklift trucks with grounded expertise, we can help you to reduce your overall TCO through a range of activities. These include optimising operator productivity, warehouse efficiency and space utilisation, as well as selecting the right power source for your needs and providing regular vehicle maintenance.
TCM
With forward-thinking machinery and unmatched industry expertise, we work closely with businesses of all sizes to understand every aspect of your working environment and discover the right solution for you.
Cutting-edge, efficient forklift trucks
Invest in partnerships
Local expertise and support
Operator comfort
Safety-first
Why TCM?
Self-Diagnostics
Maximising up-time, the truck's computer has a built-in troubleshooting system that simplifies fault diagnostics. No special tools or computers are needed to fix the truck which shortens repair times.
Dealer Network
TCM’s extensive pan-European dealer network means that not only will you have an experienced, understanding partnership pre-sales, but the after-care and any servicing is handled by your local experts quickly and professionally.
Shared Parts Philosophy
TCM trucks are modular built with our unique shared components philosophy, enabling quick and easy servicing for maximum uptime — even in 24/7 operations and heavy-duty applications.
